Carlin oil burner parts

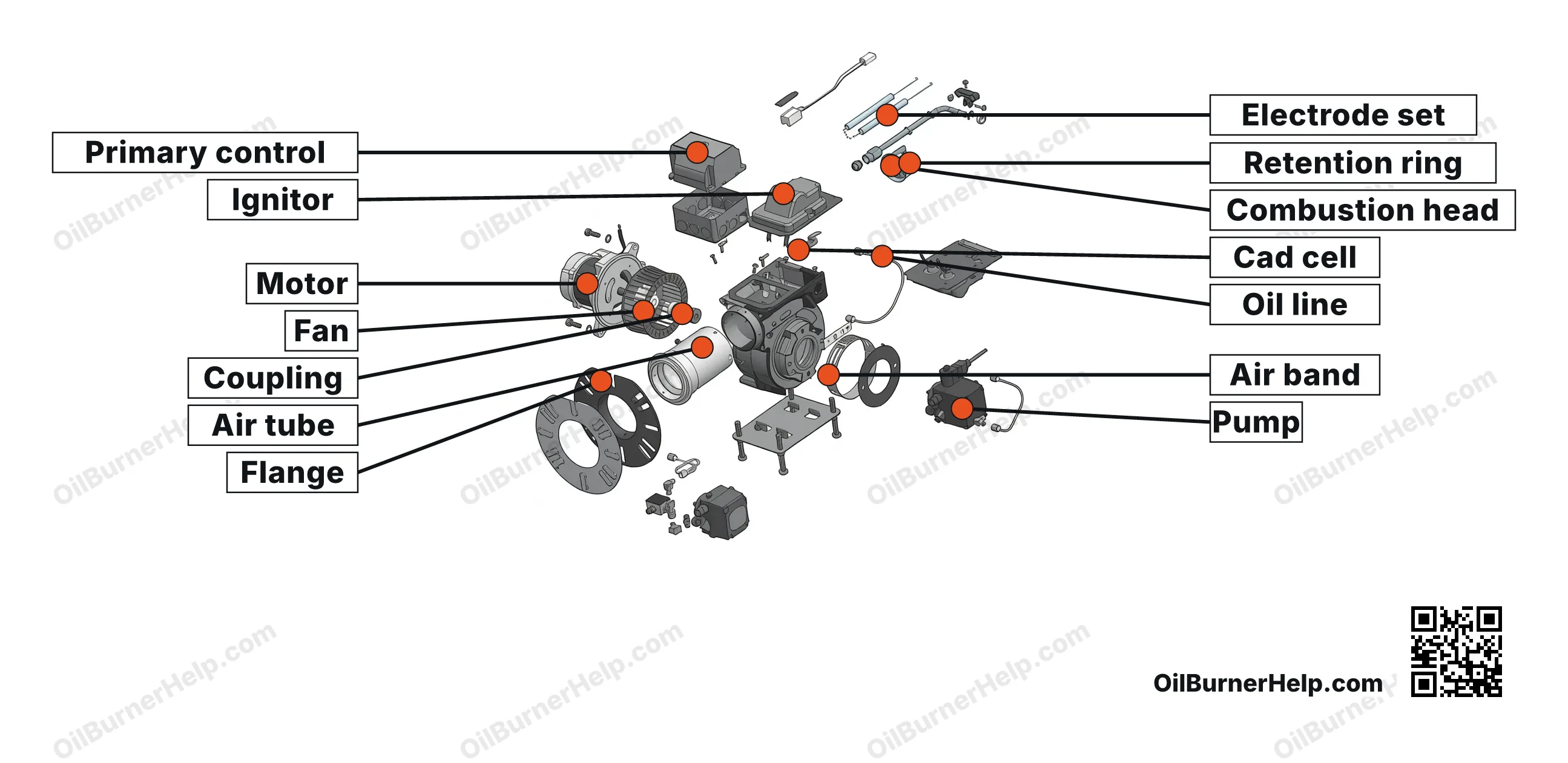

Carlin oil burner parts for the EZ-1 (EZ-Pro) gun burner, on one labeled exploded view that covers the EZ-1/2/3. The combustion-head, electrode, and air-tube parts are sized by air-tube length.
Some links on this page are affiliate links: as an Amazon Associate this site earns from qualifying purchases, and it may earn from other retail partners, at no extra cost to you. Parts shown are general references, not specific endorsements. Match any part to your unit's make, model, and spec before buying.
Carlin EZ-1 parts
Burner & combustion head
| Part | OEM part # | Shop |
|---|---|---|
| Primary control (60200) Often with: nozzle, pump strainer (in the tune-up kit), cad cell | 6020002S | Amazon ↗ Zoro ↗ |
| Cad cell Often with: nozzle, pump strainer (in the tune-up kit), primary control | 14407S0ES | Search Amazon ↗ Zoro ↗ |
| Ignitor (solid-state) Often with: nozzle, cad cell, pump strainer (in the tune-up kit) | 45000S | Search Amazon ↗ Zoro ↗ |
| Fuel pump (Suntec A2VA-7116) Often with: pump coupling, nozzle, nozzle line | 27813B20S | Search Amazon ↗ Zoro ↗ |
| Motor (1/6 HP PSC) Carlin lists this 98022S motor as 1/6 HP in the EZ manuals, the motor data sheet and on the motor label; the replacement-parts sheet prints 1/7 HP for the same number. Often with: nozzle, pump strainer (in the tune-up kit), pump coupling | 98022S | Amazon ↗ Zoro ↗ |
| Blower wheel Often with: burner motor, nozzle | 77933S | Search Amazon ↗ Zoro ↗ |
| Coupling Often with: fuel pump, nozzle, pump strainer (in the tune-up kit) | 75564S | Amazon ↗ Zoro ↗ |
| Air band kit | 98055S | Search Amazon ↗ Zoro ↗ |
| Oil line kit Often with: fuel pump, nozzle | 34397S | Search Amazon ↗ Zoro ↗ |
| Mounting flange & gasket Source: Wayne MSR and MSR-DC manual 22019-003, Burner Components, page 13, items 14 and 15; the 21724-011 flange and gasket package on the Wayne price sheet is the HS Blue Angel Plus part, not the MSR one | 81372S | Search Amazon ↗ Zoro ↗ |
| Retention ring (static disc) | 77438S | Amazon ↗ Zoro ↗ |
| Combustion head By air-tube length, so match yours. | 5 part numbers, tap to compare
| |
| Electrode set By air-tube length, so match yours. Often with: nozzle | 5 part numbers, tap to compare
| |
| Air tube + head assembly By length, so match yours. | 4 part numbers, tap to compare
| |
Which part is it?
Match the symptom to its guide before you buy. Lights, runs a moment, then quits: furnace fires then shuts off (the flame-sensing side). Nothing happens at all, no motor, no hum: oil furnace not turning on. Quit after the tank ran dry: how to bleed an oil furnace after a run-out. The nozzle, filter, electrodes, and flame sensor are the wear parts on the annual tune-up checklist; the nozzle chart converts a nozzle's rated GPH and pump pressure to firing rate, and parts by symptom covers the parts common to every brand.
Amazon links are affiliate links; this site may earn a commission at no extra cost to you. Zoro links are plain product searches with no relationship to this site. Part numbers are drawn from manufacturer documentation, but supersessions happen, so always confirm the number against your unit's rating plate before ordering.
