Riello oil burner parts

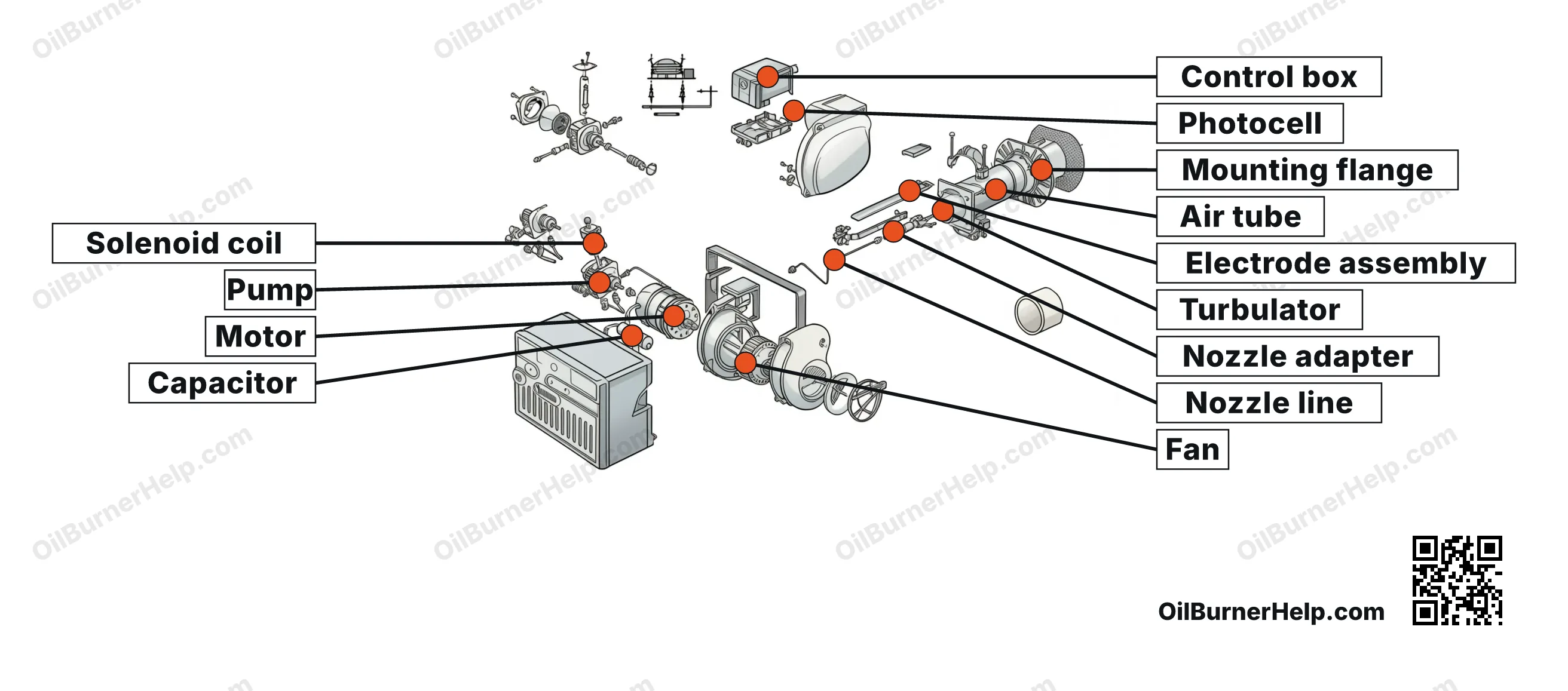

Riello burner parts for the 40 series F3 and F5, each on a labeled diagram with its OEM part number. The F3 and F5 share the same chassis (the F5 is the larger fire-rate), so most parts are common to both; the combustion-head parts vary by air-tube length.
Some links on this page are affiliate links: as an Amazon Associate this site earns from qualifying purchases, and it may earn from other retail partners, at no extra cost to you. Parts shown are general references, not specific endorsements. Match any part to your unit's make, model, and spec before buying.
Riello 40 F3 / F5 parts
Burner & combustion head
| Part | OEM part # | Shop |
|---|---|---|
| Control box (primary control) Handles ignition. The F-series has no separate ignition transformer.
Often with: nozzle, pump strainer (in the tune-up kit), cad cell Source: Riello 40 F3 and F5 Installation Manual C6501010 Rev. 3 (08/03/2005), Riello Spare Parts List F3 and F5, page 19, read from the page image | C7001029 | Search Amazon ↗ Zoro ↗ |
| Photocell (flame sensor)
Often with: nozzle, pump strainer (in the tune-up kit), primary control Source: Riello 40 F3 and F5 Installation Manual C6501010 Rev. 3 (08/03/2005), Riello Spare Parts List F3 and F5, page 19, read from the page image | 3002280 | Search Amazon ↗ Zoro ↗ |
| Fuel pump The 2024 Riello service guide lists this pump as 20188413; 3007802 is the number on the 2005 parts list and the one retailers still use.
Often with: nozzle, nozzle line Source: Riello 40 F3 and F5 Installation Manual C6501010 Rev. 3 (08/03/2005), Riello Spare Parts List F3 and F5, page 19, read from the page image | 3007802 | Amazon ↗ Zoro ↗ |
| Motor The 2024 Riello service guide lists this motor as C7001034; 3005843 is the number on the 2005 parts list and the one retailers still use.
Often with: nozzle, pump strainer (in the tune-up kit) Source: Riello 40 F3 and F5 Installation Manual C6501010 Rev. 3 (08/03/2005), Riello Spare Parts List F3 and F5, page 19, read from the page image | 3005843 | Amazon ↗ Zoro ↗ |
| Fan
Often with: burner motor, nozzle Source: Riello 40 F3 and F5 Installation Manual C6501010 Rev. 3 (08/03/2005), Riello Spare Parts List F3 and F5, page 19, read from the page image | 3005708 | Amazon ↗ Zoro ↗ |
| Capacitor Source: Riello 40 F3 and F5 Installation Manual C6501010 Rev. 3 (08/03/2005), Riello Spare Parts List F3 and F5, page 19, read from the page image | 3005844 | Amazon ↗ Zoro ↗ |
| Solenoid coil Source: Riello 40 F3 and F5 Installation Manual C6501010 Rev. 3 (08/03/2005), Riello Spare Parts List F3 and F5, page 19, read from the page image | 3002279 | Amazon ↗ Zoro ↗ |
| Mounting flange Source: Riello 40 F3 and F5 Installation Manual C6501010 Rev. 3 (08/03/2005), Riello Spare Parts List F3 and F5, page 19, read from the page image | 3005855 | Amazon ↗ Zoro ↗ |
| Turbulator (diffuser disc) Differs by model. | 2 part numbers, tap to compare
Source: Riello 40 F3 and F5 Installation Manual C6501010 Rev. 3 (08/03/2005), Riello Spare Parts List F3 and F5, page 19, read from the page image | |
| Nozzle adapter | 3006965 | Search Amazon ↗ Zoro ↗ |
| Electrode assembly By combustion-head length and by model (F3 or F5), so match both. Often with: nozzle | 8 part numbers, tap to compare
Source: Riello 40 F3 and F5 Installation Manual C6501010 Rev. 3 (08/03/2005), Riello Spare Parts List F3 and F5, page 19, read from the page image | |
| Nozzle line (oil tube) By combustion-head length and by model (F3 or F5), so match both. Often with: fuel pump, nozzle | 8 part numbers, tap to compare
Source: Riello 40 F3 and F5 Installation Manual C6501010 Rev. 3 (08/03/2005), Riello Spare Parts List F3 and F5, page 19, read from the page image | |
| Air tube By combustion-head length and by model (F3 or F5), so match both. | 8 part numbers, tap to compare
Source: Riello 40 F3 and F5 Installation Manual C6501010 Rev. 3 (08/03/2005), Riello Spare Parts List F3 and F5, page 19, read from the page image | |
Which part is it?
Match the symptom to its guide before you buy. Lights, runs a moment, then quits: furnace fires then shuts off (the flame-sensing side). Nothing happens at all, no motor, no hum: oil furnace not turning on. Quit after the tank ran dry: how to bleed an oil furnace after a run-out. The nozzle, filter, electrodes, and flame sensor are the wear parts on the annual tune-up checklist; the nozzle chart converts a nozzle's rated GPH and pump pressure to firing rate, and parts by symptom covers the parts common to every brand.
Amazon links are affiliate links; this site may earn a commission at no extra cost to you. Zoro links are plain product searches with no relationship to this site. Part numbers are drawn from manufacturer documentation, but supersessions happen, so always confirm the number against your unit's rating plate before ordering.
